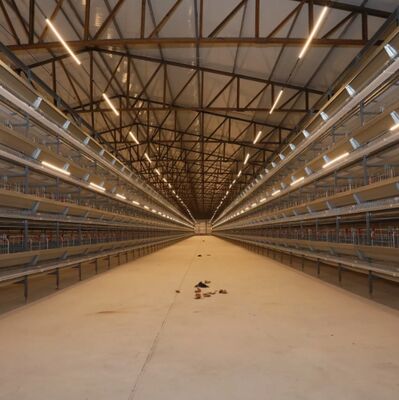

Galvanized Steel Poultry House Equipment with Automatic Control and Customizable Dimensions

Our bird feeder is designed to meet the needs of modern poultry farming, combining high efficiency with reliable quality to deliver the ideal feeding solution for your flock.

• High Efficiency: The automated feeding system reduces labor costs and significantly boosts production efficiency.
• Premium Quality: Built with durable, long-lasting raw materials, the equipment offers a service life of 8-10 years.
• Automatic Control: Fully automated operation enables convenient, hands-free management and precise control.

Experience the convenience and reliability of our bird feeder, brought to you by Qingdao KXD Steel Structure Co., Ltd.

The main feeding silo is professionally designed to deliver feed to chicken houses efficiently, with effective avoidance of feed contamination and material loss during transportation.

• Silo capacity: 12-32 tons
• Material: Made of hot‑dip galvanized steel for strong durability and anti‑corrosion performance
• Drive motor: Equipped with WanXin drive motor: 1.1KW, 380V, 50HZ, ensuring stable and reliable operation
• Main feed line diameter: ∅75mm
• Feed outlet: Fitted with ∅75mm soft pipe for smooth feed conveying and distribution

Built with sturdy structure and optimized layout, this main feeding system ensures safe, clean and pollution-free feed delivery to the chicken house. The hot‑dip galvanized structure offers excellent corrosion resistance and longer service life.

The feeding line system is specially designed to convey feed efficiently to each distribution pipeline. Adopting hot-dip galvanized pipes, the system features outstanding durability and a long service life.

• Feeder Pan: Optional 4 pans or 3 pans per 3 meters
• Drive Motor: Equipped with WanXin motor, 0.75 Kw, 380V, 50HZ for stable and reliable operation
• Hopper: Made of hot-dip galvanized material for excellent anti-corrosion performance
• Feed Sensor: Fitted with Doyle motor to precisely monitor feed volume and effectively avoid feed overflow
• Hanging System: Designed with a middle winch inside the chicken house, with a 3-meter hanging interval; the whole system is suspended by steel wire for stable installation

Upgrade your farm with our professional feeding line system for efficient feed distribution and effective overflow prevention.

The Nipple Drinking System offers a high-efficiency and high-quality water supply solution for poultry houses. It adopts optimized structural design to provide clean, stable and hygienic drinking water for poultry all the time.

• Waterline Front Assembly: Equipped with filter, water meter and medicator, realizing precise water treatment and easy daily maintenance
• Pressure Regulator: Keeps stable water pressure at 10-13KPA to ensure the whole drinking line works steadily
• Main Water Pipeline: Adopts ∅22mm PVC pipe, featuring good durability and smooth water delivery
• Drinking Nipple Unit: Each set is configured with 12 drinking nipples matched with drip cups, supporting simultaneous drinking for poultry and reducing water waste effectively
• Winch System: Equipped with 1500LB winch, making height adjustment and installation much more convenient
• Hanging System: Standard 3-meter hanging spacing ensures overall stability of the water line
• Water Level Observation Pipe: Visible water level design for real-time checking and simple maintenance
• Anti-roost Device: Professional anti-roost structure avoids poultry staying on the water line, keeping the whole system clean and sanitary

Upgrade your poultry farm with our Nipple Drinking System from Qingdao KXD Steel Structure Co., Ltd.

With reasonable layout and reliable performance, it realizes scientific water supply management, guarantees good water quality and easy water access for your poultry.

Our ventilation system is a professional customized solution to create a comfortable and healthy living environment for poultry. It consists of air inlet windows and exhaust cooling fans, which can be perfectly matched with an intelligent environmental control system.

The system supports flexible ventilation time adjustment according to chicken growth stage and seasonal climate changes, effectively keeping poultry in good health and reducing disease risks.

• Combined design with air inlet windows and cooling exhaust fans
• Compatible with intelligent environmental control system for integrated management
• Adjustable ventilation mode based on chicken age and seasonal conditions
• Improves indoor air quality, keeps chickens healthy and reduces disease incidence

Choose the ventilation system from Qingdao KXD Steel Structure Co., Ltd.

It helps you build a stable, comfortable and disease-free breeding environment for your poultry farm.

Our Automatic Cooling Pad System is a professional solution specially designed to maintain ideal temperature and humidity inside chicken houses.

Equipped with high-performance evaporative cooling pads, the system can precisely regulate the temperature and humidity inside the poultry house. The cooling pad can be customized to match the actual scale and requirements of your farm.

Water flows evenly over the surface of the cooling pad, bringing efficient heat dissipation through water evaporation. It creates a constant, comfortable living environment for chickens.

Adopt the Automatic Cooling Pad System from Qingdao KXD Steel Structure Co., Ltd.

It always keeps poultry in optimal growing conditions, ensuring better health and higher breeding productivity.
